Final_OOP/Documentacion/CasosDeUso/CasosDeUso.org

Casos De Uso

• Empleado Gestiona un Producto
• Empleado Gestion Categorias
• Empleado Registra Facturas
• Empleado Registra Ordenes de Compra
• Empleado Registra Remito
• Se pide un Presupuesto
• Carga de presupuesto enviado por un proveedor
• Informar pocos productos en stock
• Gestionar Mails de Informes
• Empleado Registra Proveedor
• Empleado Registra Cliente

Empleado Gestiona un Producto

@startuml
left to right direction
actor "Empleado" <<Persona>> as fc
rectangle GestionProductos {
  usecase "Gestionar Productos" as UC1
  usecase "Listar Productos" as UC2
  usecase "Modificar Productos" as UC3
  usecase "Eliminar Producto" as UC4
  usecase "Registrar Producto" as UC5
  usecase "Seleccionar Proveedor" as uc7
  usecase "Gestionar Categorias" as uc6
}
fc --> UC1
UC1 ..> UC2: "include"
UC3 ..> UC1: "extend"
UC4 ..> UC1: "extend"
UC5 ..> UC1: "extend"
UC5 ..> uc7: "include"

UC3 .> uc6: "include"
UC5 .> uc6: "include"
@enduml

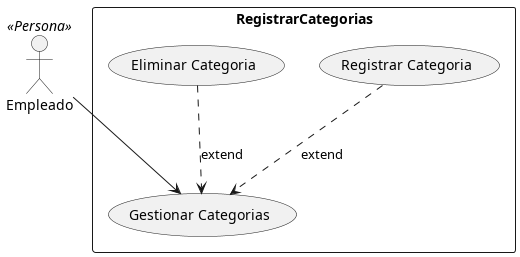

Empleado Gestion Categorias

@startuml
actor "Empleado" <<Persona>> as fc
rectangle RegistrarCategorias {
  usecase "Gestionar Categorias" as UC1
  usecase "Eliminar Categoria" as UC4
  usecase "Registrar Categoria" as UC5
}
fc --> UC1
UC4 ..> UC1: "extend"
UC5 ..> UC1: "extend"
@enduml

Empleado Registra Facturas

@startuml
left to right direction
actor "Empleado" <<Persona>> as fc
rectangle RegistrarFacturas {
  usecase "Gestionar Facturas" as uc0
  usecase "Registrar Factura" as UC1
  usecase "Listar Productos Con Existencias" as UC2
  usecase "Filtrar Producto Por Categoria" as uc3
  usecase "Descontar Stock" as uc4
}

fc --> uc0
uc0 <.. UC1: "extend"
uc0 ..> UC2: "include"
UC2 ..> uc3: "include"
UC1 ..> uc4: "include"
@enduml

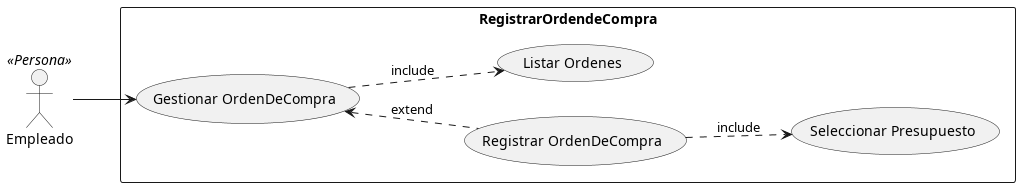

Empleado Registra Ordenes de Compra

@startuml
left to right direction
actor "Empleado" <<Persona>> as fc
rectangle RegistrarOrdendeCompra {
  usecase "Gestionar OrdenDeCompra" as uc0
  usecase "Registrar OrdenDeCompra" as UC1
  usecase "Seleccionar Presupuesto" as uc3
  usecase "Listar Ordenes" as UC2
}

fc --> uc0
uc0 <.. UC1: "extend"
uc0 ..> UC2: "include"
UC1 ..> uc3: "include"
@enduml

Empleado Registra Remito

@startuml
left to right direction
actor "Empleado" <<Persona>> as fc
rectangle RegistroRemito {
  usecase "Gestionar Remitos" as uc0
  usecase "Registrar Remito" as UC1
  usecase "Aumentar Stock" as uc3
  usecase "Listar Remitos" as uc4
}

fc --> uc0
uc0 ..> uc4: "include"
uc0 <.. UC1: "extend"
UC1 ..> uc3: "include"
@enduml

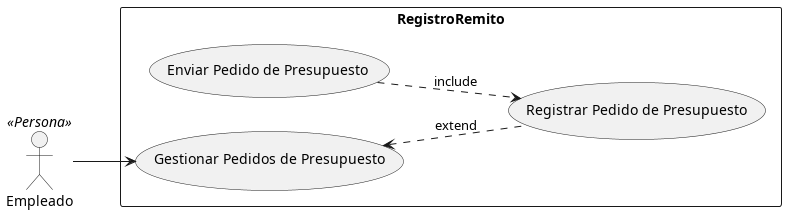

Se pide un Presupuesto

@startuml
left to right direction
actor "Empleado" <<Persona>> as fc
rectangle RegistroRemito {
  usecase "Gestionar Pedidos de Presupuesto" as uc0
  usecase "Enviar Pedido de Presupuesto" as uc1
  usecase "Registrar Pedido de Presupuesto" as uc3
}

fc --> uc0
uc0 <.. uc3: "extend"
uc1 ..> uc3: "include"
@enduml

Carga de presupuesto enviado por un proveedor

@startuml
left to right direction
actor "Empleado" <<Persona>> as fc
rectangle RegistroRemito {
  usecase "Gestionar Presupuestos" as uc0
  usecase "Registrar Presupuesto" as uc1
}

fc --> uc0
uc0 <.. uc1: "extend"
@enduml

Informar pocos productos en stock

actor "Sistema" <<Programa>> as pr

rectangle "Aviso Stock Restante" {
 note "<<Invariable>>\n producto->stock <= producto->umbralAvisoStock" as n1

 usecase "Checkear Stock" as uc0
 usecase "Enviar Informe" as uc1

 usecase "Enviar Mail" as uc2
 usecase "Mostrar MessageBox" as uc3

}

pr --> uc0
uc1 ..> uc0: "extend"
uc1 ..> uc2: "include"
uc1 ..> uc3: "include"

n1 .. uc0

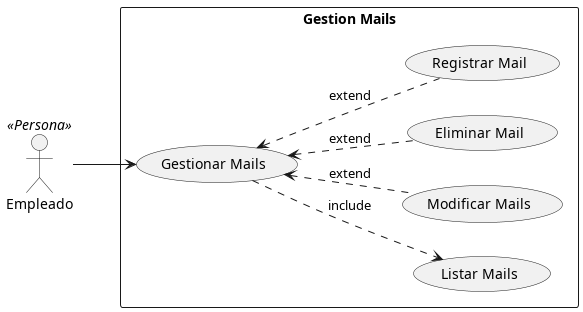

Gestionar Mails de Informes

@startuml
actor "Empleado" <<Persona>> as cl

rectangle "Gestion Mails" {
 usecase "Gestionar Mails" as UC1
 usecase "Listar Mails" as UC2
 usecase "Modificar Mails" as UC3
 usecase "Eliminar Mail" as UC4
 usecase "Registrar Mail" as UC5
}

left to right direction
cl --> UC1
UC1 ..> UC2: "include"
UC1 <.. UC3: "extend"
UC1 <.. UC4: "extend"
UC1 <.. UC5: "extend"
@enduml

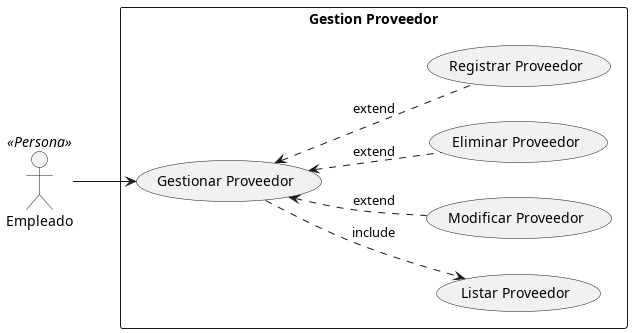

Empleado Registra Proveedor

@startuml
actor "Empleado" <<Persona>> as cl

rectangle "Gestion Proveedor" {
 usecase "Gestionar Proveedor" as UC1
 usecase "Listar Proveedor" as UC2
 usecase "Modificar Proveedor" as UC3
 usecase "Eliminar Proveedor" as UC4
 usecase "Registrar Proveedor" as UC5
}

left to right direction
cl --> UC1
UC1 ..> UC2: "include"
UC1 <.. UC3: "extend"
UC1 <.. UC4: "extend"
UC1 <.. UC5: "extend"
@enduml

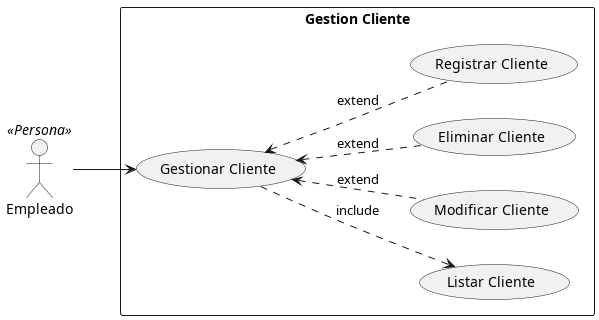

Empleado Registra Cliente

@startuml
actor "Empleado" <<Persona>> as cl

rectangle "Gestion Cliente" {
 usecase "Gestionar Cliente" as UC1
 usecase "Listar Cliente" as UC2
 usecase "Modificar Cliente" as UC3
 usecase "Eliminar Cliente" as UC4
 usecase "Registrar Cliente" as UC5
}

left to right direction
cl --> UC1
UC1 ..> UC2: "include"
UC1 <.. UC3: "extend"
UC1 <.. UC4: "extend"
UC1 <.. UC5: "extend"
@enduml
