Casos De Uso

• Usuario Gestiona un Producto
• Usuario Gestion Categorias
• Usuario Registra Facturas
• Informar pocos productos en stock
• Gestionar Mails de Informes

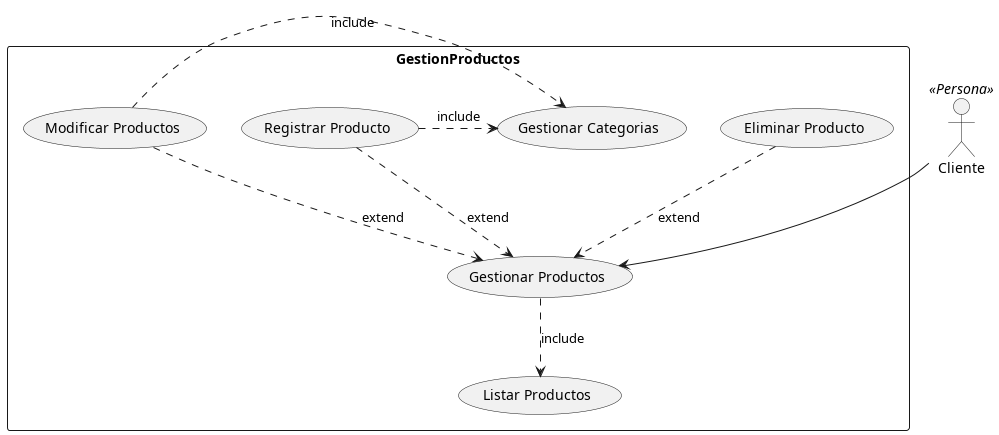

Usuario Gestiona un Producto

@startuml
left to right direction
actor "Cliente" <<Persona>> as fc
rectangle GestionProductos {
  usecase "Gestionar Productos" as UC1
  usecase "Listar Productos" as UC2
  usecase "Modificar Productos" as UC3
  usecase "Eliminar Producto" as UC4
  usecase "Registrar Producto" as UC5
  usecase "Seleccionar Proveedor" as uc7
  usecase "Gestionar Categorias" as uc6
}
fc --> UC1
UC1 ..> UC2: "include"
UC3 ..> UC1: "extend"
UC4 ..> UC1: "extend"
UC5 ..> UC1: "extend"
UC5 ..> uc7: "include"

UC3 .> uc6: "include"
UC5 .> uc6: "include"
@enduml

Usuario Gestion Categorias

@startuml
actor "Cliente" <<Persona>> as fc
rectangle RegistrarCategorias {
  usecase "Gestionar Categorias" as UC1
  usecase "Eliminar Categoria" as UC4
  usecase "Registrar Categoria" as UC5
}
fc --> UC1
UC4 ..> UC1: "extend"
UC5 ..> UC1: "extend"
@enduml

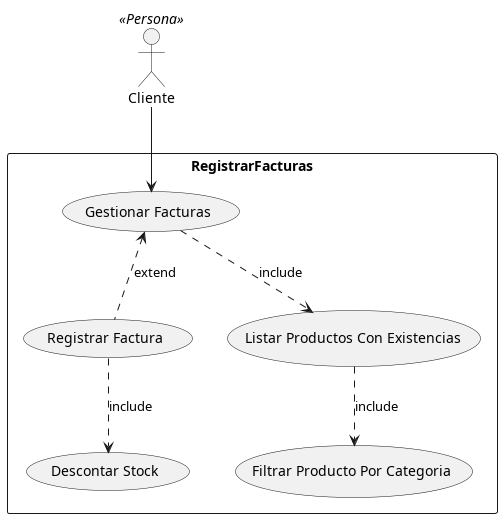

Usuario Registra Facturas

@startuml
left to right direction
actor "Cliente" <<Persona>> as fc
rectangle RegistrarFacturas {
  usecase "Gestionar Facturas" as uc0
  usecase "Registrar Factura" as UC1
  usecase "Listar Productos Con Existencias" as UC2
  usecase "Filtrar Producto Por Categoria" as uc3
  usecase "Descontar Stock" as uc4
}

fc --> uc0
uc0 <.. UC1: "extend"
uc0 ..> UC2: "include"
UC2 ..> uc3: "include"
UC1 ..> uc4: "include"
@enduml

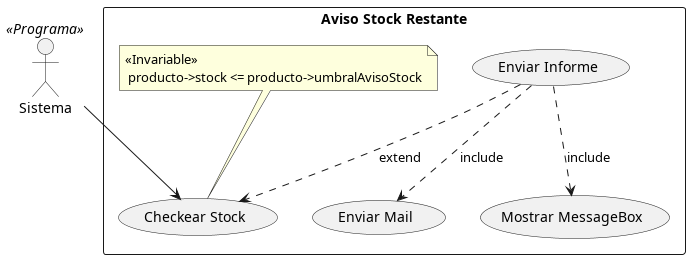

Informar pocos productos en stock

actor "Sistema" <<Programa>> as pr

rectangle "Aviso Stock Restante" {
 note "<<Invariable>>\n producto->stock <= producto->umbralAvisoStock" as n1

 usecase "Checkear Stock" as uc0
 usecase "Enviar Informe" as uc1

 usecase "Enviar Mail" as uc2
 usecase "Mostrar MessageBox" as uc3

}

pr --> uc0
uc1 ..> uc0: "extend"
uc1 ..> uc2: "include"
uc1 ..> uc3: "include"

n1 .. uc0

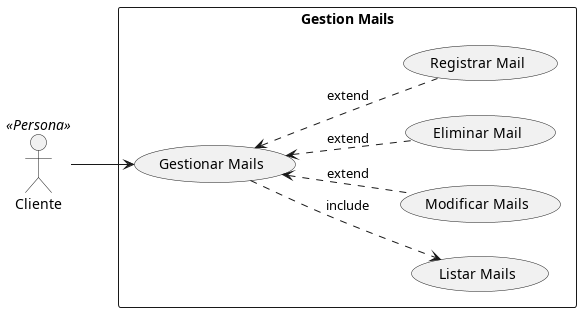

Gestionar Mails de Informes

@startuml
actor "Cliente" <<Persona>> as cl

rectangle "Gestion Mails" {
 usecase "Gestionar Mails" as UC1
 usecase "Listar Mails" as UC2
 usecase "Modificar Mails" as UC3
 usecase "Eliminar Mail" as UC4
 usecase "Registrar Mail" as UC5
}

left to right direction
cl --> UC1
UC1 ..> UC2: "include"
UC1 <.. UC3: "extend"
UC1 <.. UC4: "extend"
UC1 <.. UC5: "extend"
@enduml
